2009 Case IH 7088 Axial-Flow Combine ~ For Sale Whole or Parting Out Asking $36,000 CAD for the complete machine with the pickup header. Parts are also available individually. Hours: about 4,400 engine hours and 3,400 separator hours Specs: ~ Engine: Cummins 8.9L (model 6TAA-9004), rated 350 hp / 261 kW at 2,200 RPM ~ Engine S/N: 46965166 ~ Engine P/N: 87308475 ~ Transmission: hydrostatic ~ Drive: Powered Rear Wheel Drive (PRWD) ~ Front tires: 800/65R32 Yieldmax ~ Rear tires: 480/70R30 Firestone ~ Residue: straw chopper with spreaders ~ Cab: air ride seat, monitor, beacon light ~ Header: Case IH 2016 14' pickup header included Parts available if parted out: ~ Engine, radiator and cooling package ~ Hydrostatic drive, pumps and final drives ~ PRWD rear axle and motors ~ Rotor, concaves and cage ~ Cleaning shoe: sieves and fan ~ Chopper and spreaders ~ Feeder house ~ Unloading auger, grain tank and extensions ~ Complete cab, monitor and seat ~ Sheet metal in good paint ~ Wheels and tires (front and rear) ~ Case IH 2016 pickup header (sold separately or with the machine) The machine is in good condition overall with clean sheet metal. Located in Ponoka, AB. We can load, and delivery can be arranged.

2002 Case IH 2388 Axial-Flow Combine – For Sale Whole or Parting Out Asking $24,000 CAD for the complete machine with the pickup header. Parts are also available individually. Hours: about 4,100 engine hours and 3,300 separator hours Specs: ~ Engine: Cummins 8.3L (model 6TAA-830), rated 280 hp / 209 kW at 2,200 RPM ~ Engine S/N: 46209913 ~ Transmission: hydrostatic ~ Front tires: 800/65R32 Yieldmax ~ Rock trap ~ Chaff spreader ~ Grain tank extensions ~ AFS-equipped ~ Header: Case IH 2015 pickup header included Parts available if parted out: ~ Engine, radiator, rotary screen and cooling package ~ Hydrostatic drive, pump, transmission and final drives ~ Rear steer axle and steering cylinder ~ Rotor, concaves and cage ~ Cleaning shoe: sieves and fan ~ Chaff spreader ~ Feeder house and rock trap ~ Unloading auger, grain tank and extensions ~ Complete cab, seat and controls ~ Sheet metal, ladders and handrails ~ Wheels and tires (front and rear) ~ Case IH 2015 pickup header (sold separately or with the machine) Many parts also fit the 2366, 2377, 2388 and 2588, and some fit the older 2100 series. Located in Ponoka, AB. We can load, and delivery can be arranged.

2015 Case IH 3152 35' Draper Header Asking $22,000 CAD A 35' Case IH draper header with the factory Case IH adapter, ready to hook to an Axial-Flow combine. Good overall condition, with good paint and sheet metal. Features: ~ Width: 35 ft ~ Case IH feeder adapter with centre feed auger ~ Pea auger (upper cross auger) ~ Transport wheels (slow-speed transport kit) ~ Pickup reel with poly tines ~ Hydraulic reel fore/aft and reel lift ~ Draper belts in good shape ~ Gauge wheels, lights and SMV sign ~ PTO driveline included Fits: Case IH Axial-Flow combines, including the 5088/6088/7088, 5130/6130/7130, 7120/8120/9120, 7230/8230/9230, 7240/8240/9240 and 7250/8250/9250. Located in Ponoka, AB. We can load, and delivery can be arranged.

2012 Case IH 2152 40' Draper Header Asking $17,000 CAD A 40' Case IH draper header with the CNH feeder adapter, ready to hook to an Axial-Flow combine. Features: ~ Width: 40 ft ~ Single knife drive ~ CNH adapter with centre feed auger ~ Split pickup reel with poly tines ~ Hydraulic reel fore/aft and reel lift ~ Slow-speed transport wheels and hitch ~ Gauge wheels, lights and SMV sign ~ PTO driveline included ~ Draper belts in usable condition Fits: Case IH Axial-Flow combines, including the 5088/6088/7088, 5130/6130/7130, 7120/8120/9120, 7230/8230/9230 and 7240/8240/9240. Located in Ponoka, AB. We can load, and delivery can be arranged.

Case IH 9230 Combine Hydrostatic Drive Motor CNH PN 88998844 Description: Used hydrostatic propel drive motor pulled from a Case IH 9230 combine with 2614 hours CNH part number 86998864 serial number 0A3G186 Complete assembly with integrated valve block wiring harness and sealed electrical connectors intact Splined output shaft in good condition Removed during teardown inspect photos for overall cosmetic wear surface grime typical of a running combine Sold as is buyer to verify fitment against their machines part number before purchase Fits: Case IH 9230 Combine verify compatibility with other 92 Series models before ordering Condition: Used Good

Feeder/Header Drive Motor - Case IH (OEM 86981121) Genuine OEM feeder/header drive motor for Case IH axial-flow combines. This hydraulic drive motor powers the feeder house and header drive system, delivering reliable torque to keep crop flow moving smoothly into the combine. Specs: ~ 1" Shaft diameter, 15 Spline ~ 1.5" Exposed Shaft Length ~ OEM Part 86981121 (Cross Reference 86996948, 87010885) Fits: Case IH AFX8010, 7010, 7120, 7230, 7250, 8010, 8120, 8230, 8240, 8250, 9010, 9120, 9230, 9240, 9250 Combines

Case IH Tandem Hydraulic Pump Casappa KP3061 A5K9 LRQ RP CUWI CSL2 Used Case IH tandem hydraulic pump removed from a 9230 combine. Manufactured by Casappa part number 799385LZ batch 0020540H built 08 13. Case IH OEM part number 503223T91 casting number F930615AC. Splined input shaft two section gear pump construction with pressure relief valve fitting and hose elbow included. Shows normal wear from use with light surface rust near the shaft seal. Functional take off part sold as is. Fits Case IH combines 9110 9130 9150 9170 9180 9210 9230 9240 9250 9260 9270 9280

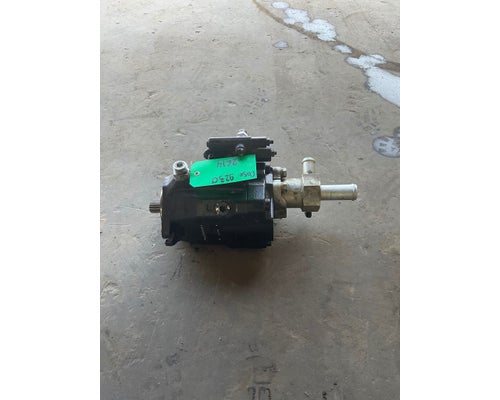

Rexroth Hydrostatic Drive Pump Case IH 9230 Combine For sale is a used Rexroth hydrostatic drive pump pulled from a Case IH 9230 combine Model number A10V060DFR1 52L VUC11N00 S3575 Material number R902502744 Case IH reference number 87105987 Serial number 42889074 Displacement 63 cc Max pressure 210 bar Max speed 2600 rpm Assembled in Fountain Inn South Carolina This pump fits Case IH combines 7010 7120 7230 7240 7250 8010 8120 8230 8240 8250 9010 9120 9230 9240 9250 and AFX8010

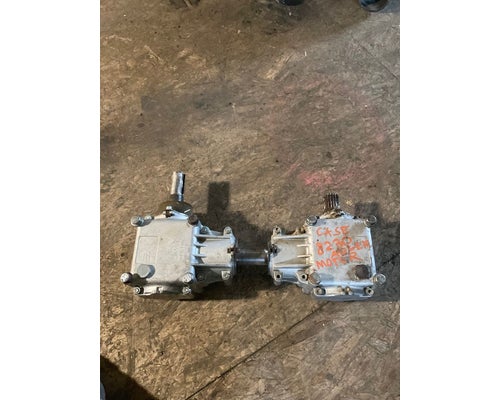

Case IH / New Holland Combine Unloading Auger Gearbox - Bondioli & Pavesi Used unloading auger drive gearbox pulled from a Case IH 8230 combine. This is a Bondioli & Pavesi manufactured unit (BREVETTATO casting mark) consisting of two connected 90° gearbox housings joined by a drive shaft. Manufacturer Tag Info: Bondioli & Pavesi Code Nr: 9.281.228.00 Cross-Reference OEM Part Numbers: ~ 84262051 (current) / 47941493 (superseded) - Upper Unloading Auger Gearbox ~ 84262053 (current) / 47941525, 11840301 (superseded) - Lower Unloading Auger Gearbox Fits the following Case IH combines: 7230, 7240, 7250, 8230, 8240, 8250, 9230, 9240, 9250 Also fits New Holland combines: CR8090, CR8.90, CR9090, CR9.90, CR10.90 Condition: Shows normal wear and shop dirt.

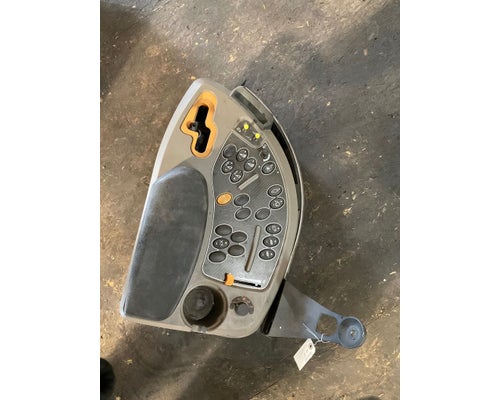

Case IH Combine RH Armrest / Console Assembly - Used, Complete Used right-hand (RH) armrest/control console pulled from a Case IH combine, serial number YCG216481 (consistent with the Axial-Flow 230 Series - 7230/8230/9230, 2012 - 2014 build). This is the operator's multi-function control console housing the header, reel, unloading auger, and ground speed controls, complete with wiring harness, control module, and switch pads. Included / Reference Part Numbers (per Case IH parts diagram): - Console assembly (complete top tray) - Part # 87483994 / 87393154 - Control Module - Part # 87521010 - Wire Harness, Console R.H. - Part # 87633917 - Switch/Keyboard Pad, Front R.H. Console - Part # 87107589 - Switch Pad, Rear R.H. Console - Part # 87282485 - Toggle Switch (Feeder) - Part # 47787102 (replaces 86997464) - Decal - Part # 87376151 - Speaker - Part # 92130406 (replaces 86998255) - Knob, EH Control Lever - Part # 87105681 - Cap/Cover - Part # 86997284

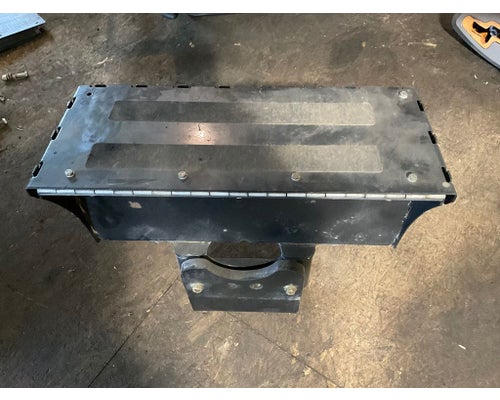

Case IH Tool Box Assembly with Mounting Brackets - OEM #84206438 (replaces 84210255, 84187148) Removed from a Case IH Quadtrac, PIN ZEF300117 (2015 model year). Fits: ~ Quadtrac 370, 420, 450, 470, 500, 535, 540, 550, 580, 600, 620; ~ Rowtrac 420, 470, 500, 620; ~ Steiger 350, 370, 400, 420, 450, 470, 500, 540, 550, 580, 600, 620. Includes mounting brackets. Used, good condition - see photos.

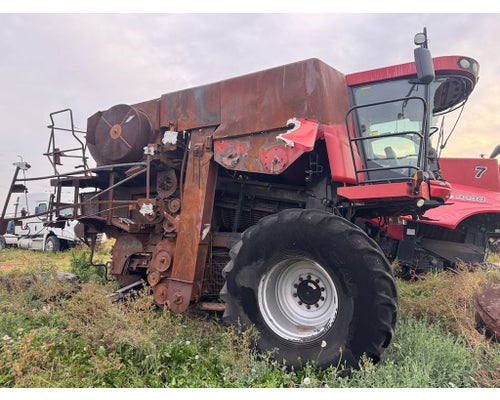

PARTING OUT ~ 2013 Case IH 8230 Axial-Flow Combine (fire damage) 2013 model year, built 2012, made in Racine, WI. The fire was mostly at the rear and top of the machine: grain tank, back sheet metal and the residue/spreader area. The engine compartment, pump drive and front of the machine held up well. Many good parts are available. Parts available (partial list): ~ Engine: FPT Cursor 13 (12.9L) and engine components. Call for details. ~ Rotor: out of the machine and ready to ship. Rasp bars are in good shape, with several newer bars. ~ Pump drive gearbox, with the hydrostatic and hydraulic pumps mounted ~ Hydraulic lines, hard lines, valves and fittings ~ Pulleys, idlers, belts and drive components from the unburned areas ~ Front drive axle, final drives, wheels and tires. The drive tire has good tread. ~ Cab parts: steering column, pedals, seat base, headliner, mirrors and mirror arms, wiper motors and cab frame. The glass is broken. ~ Feeder house and front-end components ~ Wiring harnesses and electrical parts from the undamaged sections Not available or damaged: the grain tank, rear sheet metal and parts of the upper sieve/residue area are fire-damaged. The display and armrest controls have already been removed. Many parts also fit the 7230, 9230, 7240, 8240, 9240 and 7120/8120/9120. Contact us with part numbers or your needs. We ship anywhere and have more photos on request.

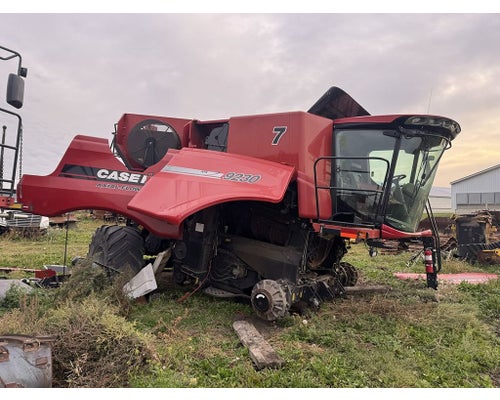

PARTING OUT ~ 2014 Case IH 9230 Axial-Flow Combine 2014 model year, built 2013, made in Racine, WI. PIN: YDG222614. The machine is in good overall condition, with clean paint and sheet metal and no fire damage. Tear-down has started, and many parts are ready to go. Parts available (partial list): ~ Engine: FPT Cursor 16 (15.9L) and engine components. Call for details. ~ Cab: complete with glass intact, steering column, lights, mirrors and ladder ~ Sheet metal: side shields, "9230" hood panels, rear panels and grain tank extensions, all in good paint ~ Unloading auger and unload drive ~ Grain tank and cross augers ~ Front drive axle, final drives and hubs, plus wheels and tires ~ Rear steer axle and rear tires ~ Rotor, concaves and cage (call for details) ~ Cleaning shoe: sieves and fan ~ Rear chopper and spreaders ~ Rotary air screen, radiator and cooling package ~ Hydrostatic drive, pump drive gearbox and hydraulic pumps ~ Hydraulic lines, valves and fittings ~ Wiring harnesses, lights and electrical parts ~ Feeder house and front-end components Many parts also fit the 7230, 8230, 7240, 8240, 9240 and 7120/8120/9120. Contact us with part numbers or your needs. We ship anywhere and have more photos on request.
