USED 2011 Claas 740 Complete

Used

Claas

740

2011

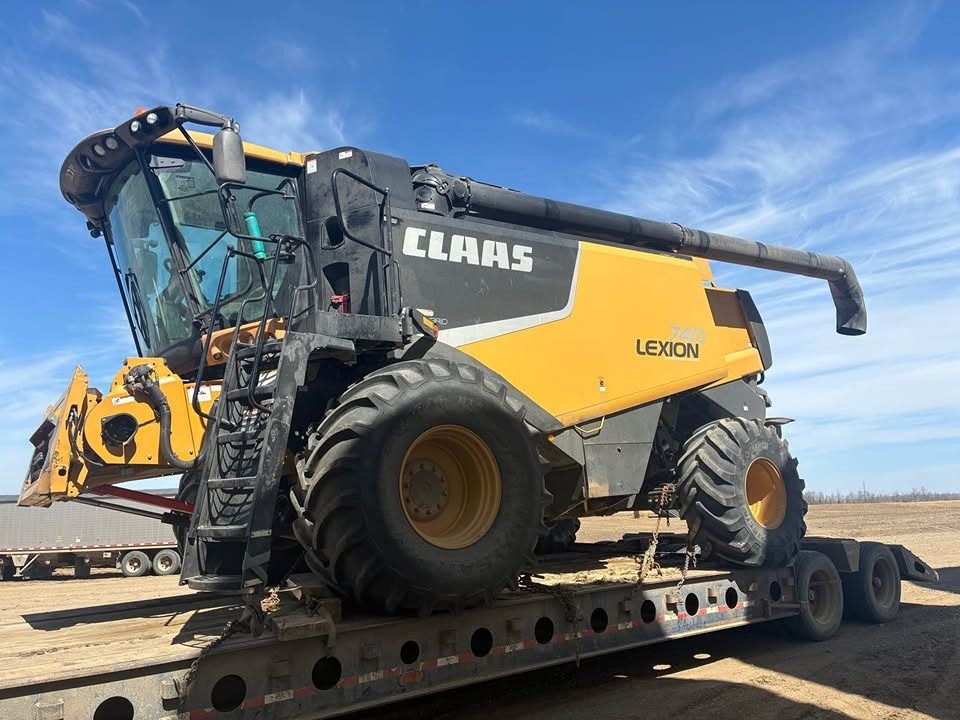

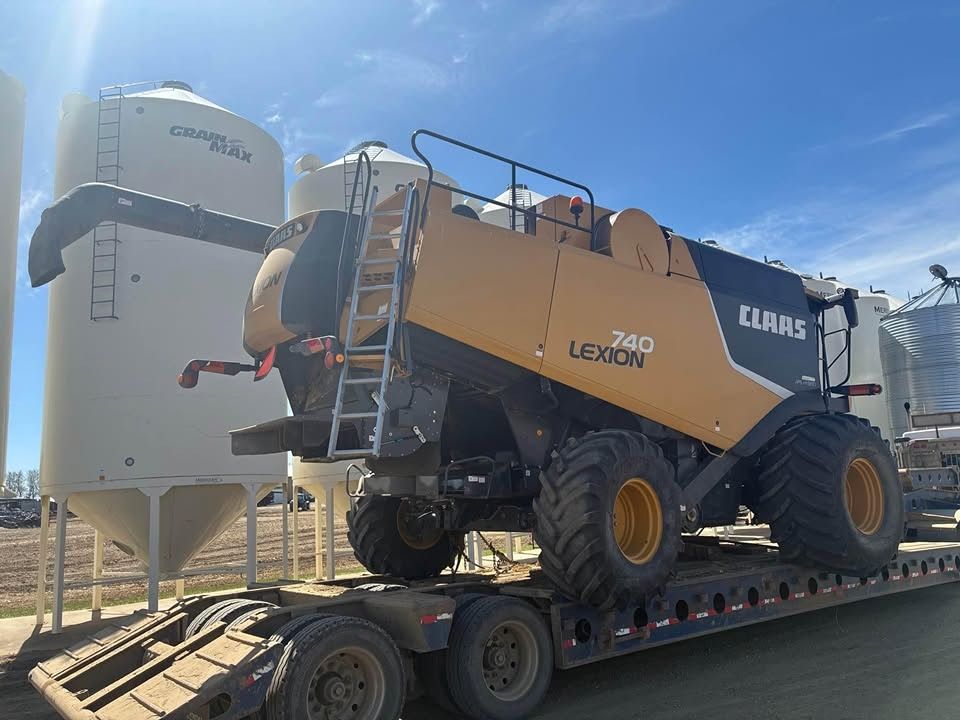

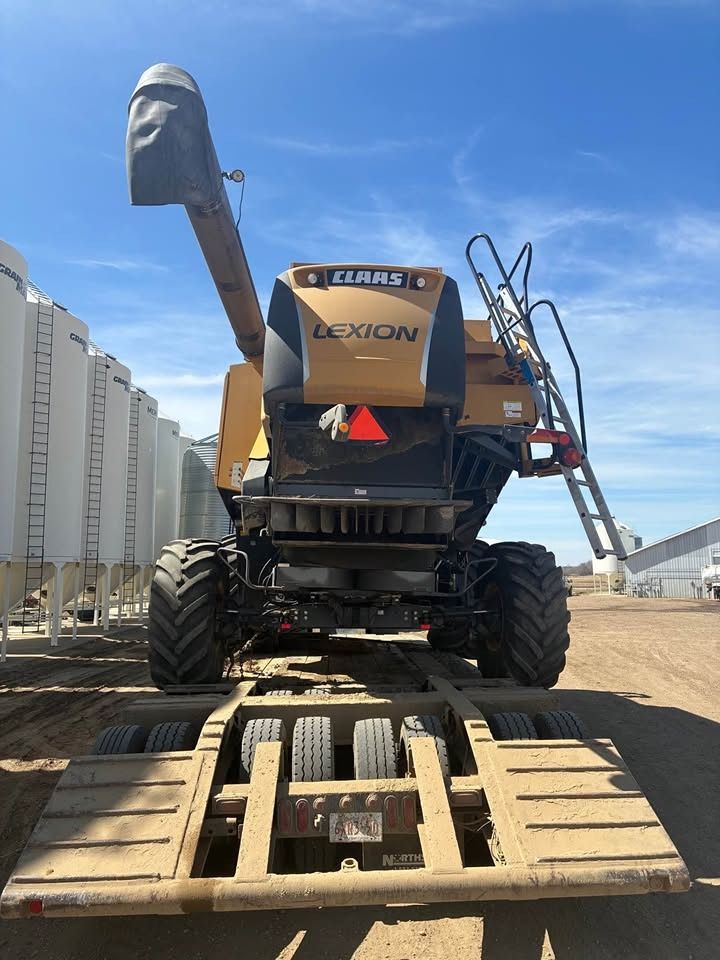

PARTING OUT ~ 2011 Claas Lexion 740 Combine (blown engine)

The CAT C9 engine is done, but the rest of the machine is in good shape. The cab is clean, the sheet metal is good and the machine was running until the engine failed. Parts are priced individually below.

Parts with prices (CAD):
~ Rotors (2 available): P/N 5082202, 5084301, 5082102 or 5084201. $3,000 each
~ Rotor gearbox: P/N 6947122 or 6947162. $6,000
~ Transfer case (engine gearbox): P/N 7758860 or 7756680. $8,000
~ Transmission: P/N 7755680. $6,000
~ Final drives: P/N 7697201. $2,500 each
~ Hydraulic motor: P/N 5104191 or 7454680. $3,000
~ Hydraulic pump: P/N 5104030, 7454340 or 1466160. $5,000
~ Variator/driver: P/N 7448540 or 6609172. $4,500
~ Variator/driver: P/N 6674181 or 18194650. $4,500
~ Variator/driver: P/N 3357520 or 18193351. $4,500
~ Variator/driver: P/N 7448230 or 6609222. $4,500
~ Sieve motor: P/N 0160582 or 18218950. $1,000

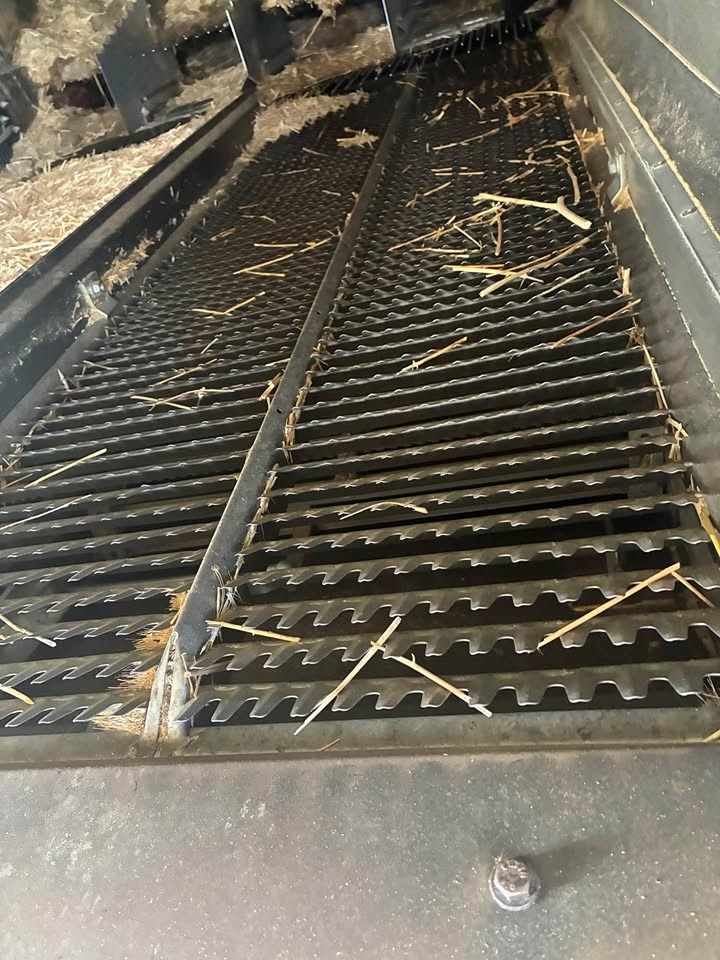

~ Sieve frame: P/N 7551390. $4,000
~ Liner motor: P/N 6292820. $1,200
~ Bubble-up gearbox: P/N 7952471. $2,200
~ Electrical box: P/N 0167011. $1,500
~ Electrical box: P/N 0173011. $3,000
~ Ladder: P/N 7836061. $350

Also available:
~ Tires: 2 x Goodyear 1050/60R32 fronts and 1 x Firestone 620/75R26 rear

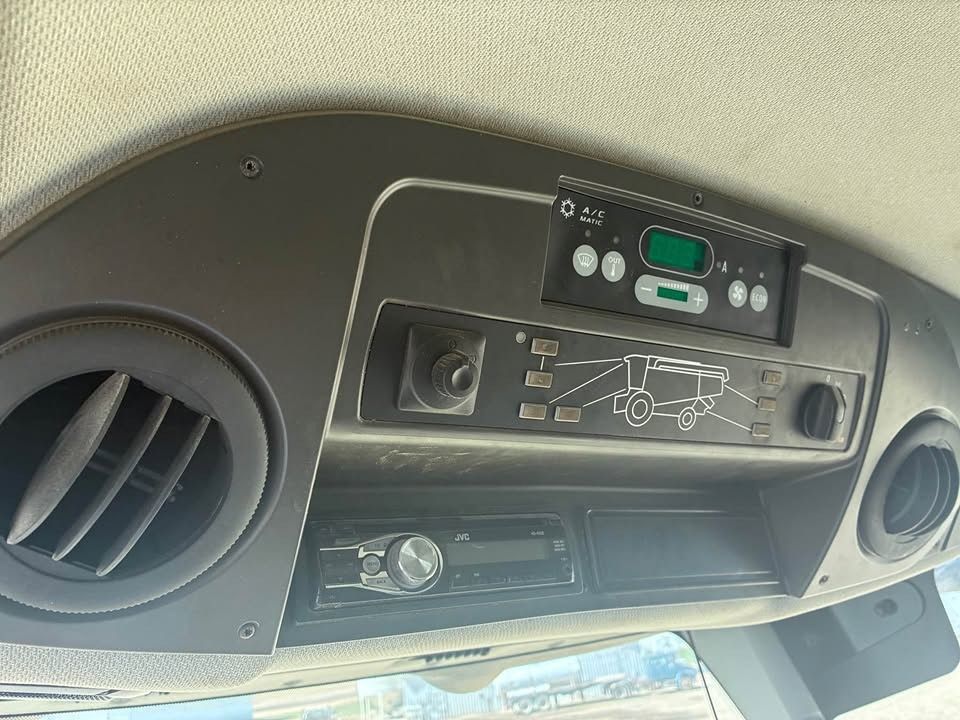

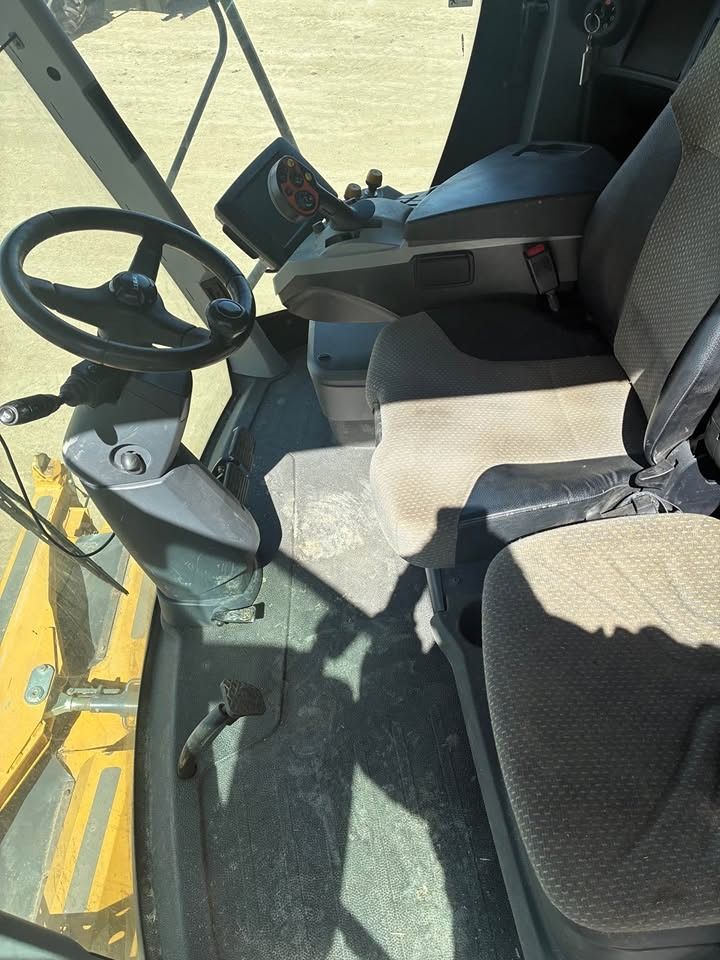

~ Cab: CEBIS terminal, joystick and armrest, seat, steering column, A/C controls and the roof panel
~ Unloading auger, grain tank and covers
~ Feeder house and front-end parts
~ Sheet metal, side panels and steps

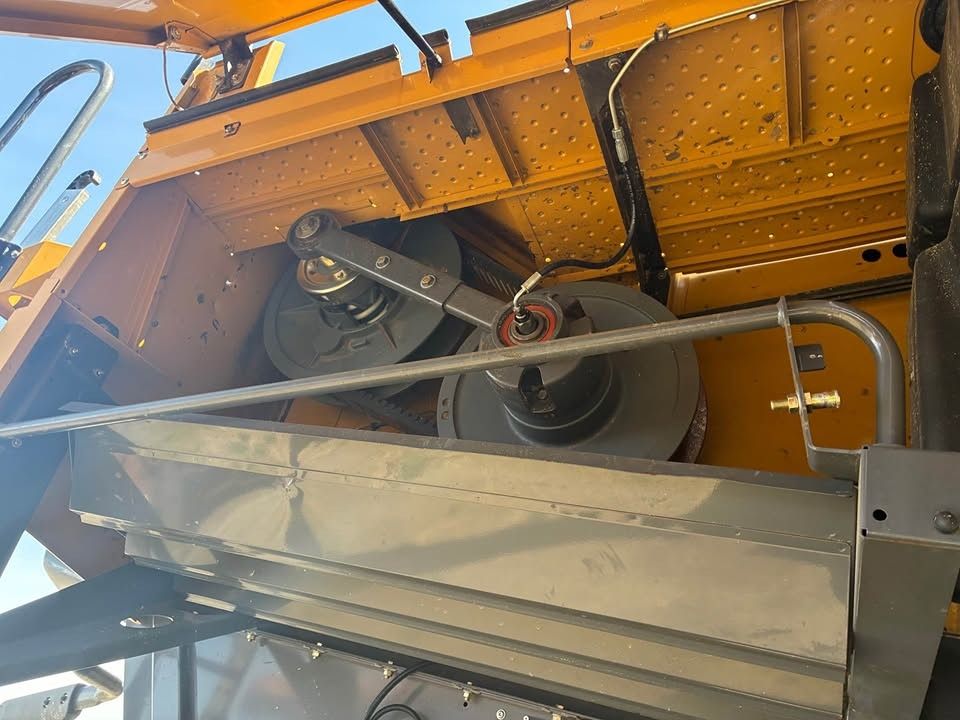

~ Belts, pulleys, tensioners and drives
~ Wiring harnesses and sensors
~ CAT C9 engine, for core or parts (price on request)

Many parts also fit Claas Lexion 730, 750, 760 and 770. Located in Ponoka, AB. We ship anywhere.
